UTM Corner Rulers Overlay - 7 Scales

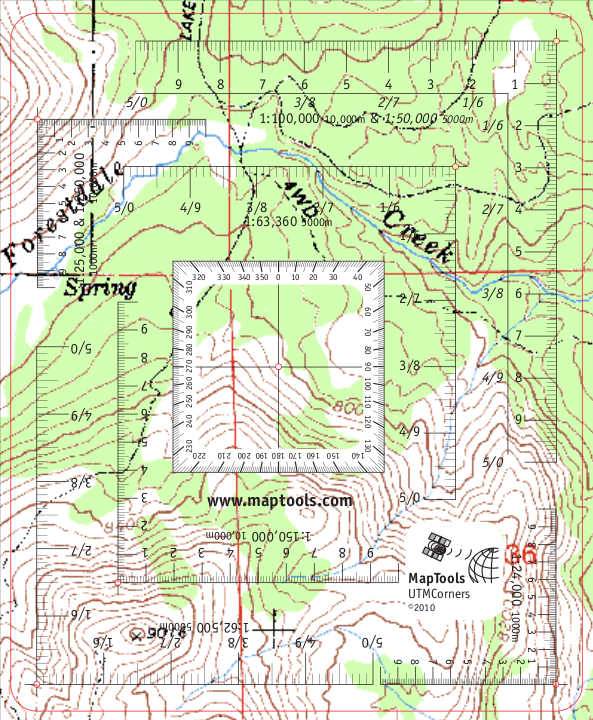

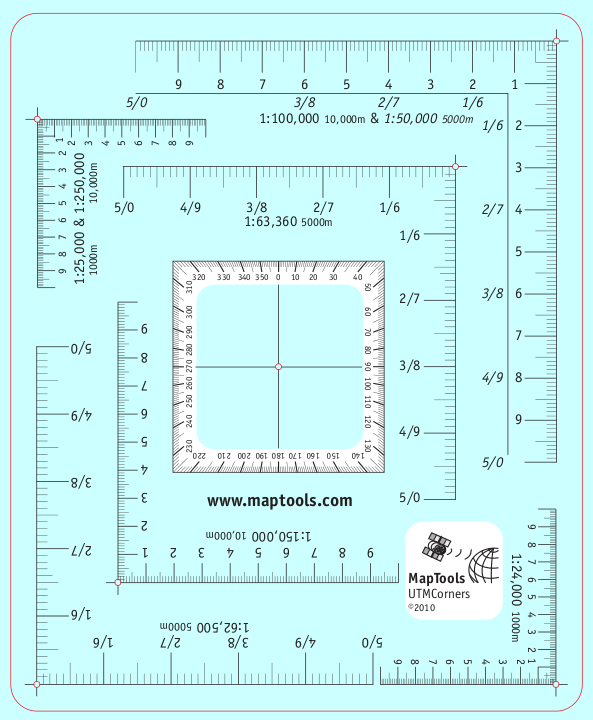

Note: Product edges and interior cutouts are shown with a thin red line. Neither the red lines, colored background, nor map image are printed on the actual tool. (more info)

Product Description

A corner ruler will allow for very precise measurements to be made within the existing map grid square. Each corner ruler has a small hole to allow for placing a mark on the map.

Add to Shopping Cart

Item description	Quantity	Price	Quantity
UTM Corner Rulers Overlay - 7 Scales Part Id: UTMCorners, Made in United States, UPC: 824249150018 Quantities of 10 or more, shipped in bulk packaging. more info	1 - 9 10 - 24 25 - 99 100+	$9.45 $8.03 $6.62 $5.67

Specifications

Scales:

1:24,000 x 1km
1:25,000 x 1km
1:50,000 x 5km
1:62,500 x 5km
1:63,360 x 5km
1:100,000 x 10km
1:150,000 x 10km
1:250,000 x 10km

Dimensions:
Height: 8.500 in. (216mm)
Width: 6.000 in. (152mm)
Thickness: 0.030 in. (1mm)
Made in United States.
