Pocket Sized UTM Slot Tool - 90 Degree Quadrants

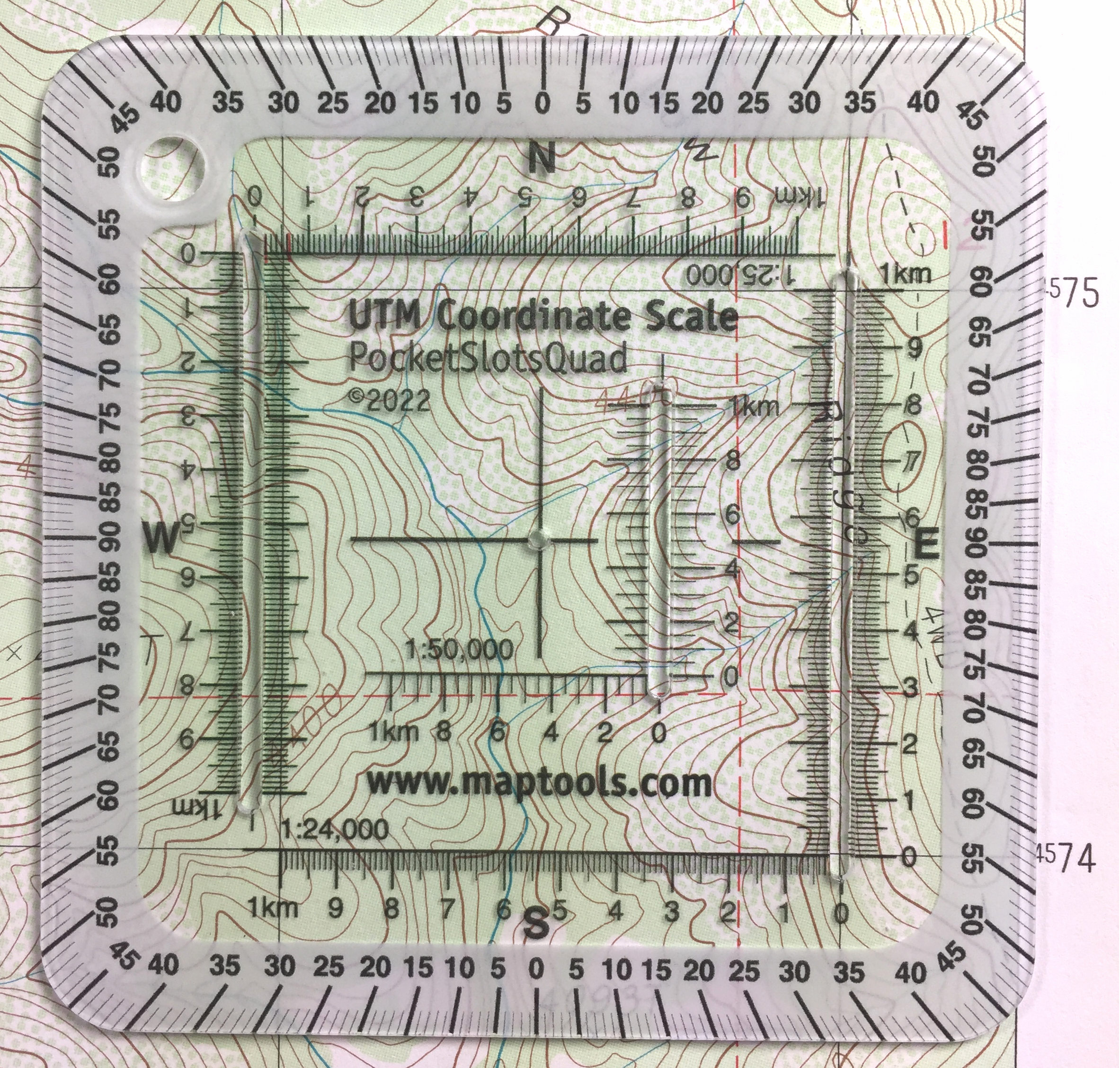

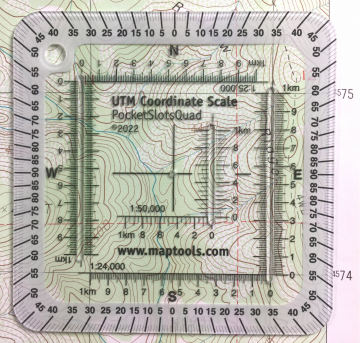

Compass rose marked in 90 degree quadrants.

Note: Product edges and interior cutouts are shown with a thin red line. Neither the red lines, colored background, nor map image are printed on the actual tool. (more info)

Product Description

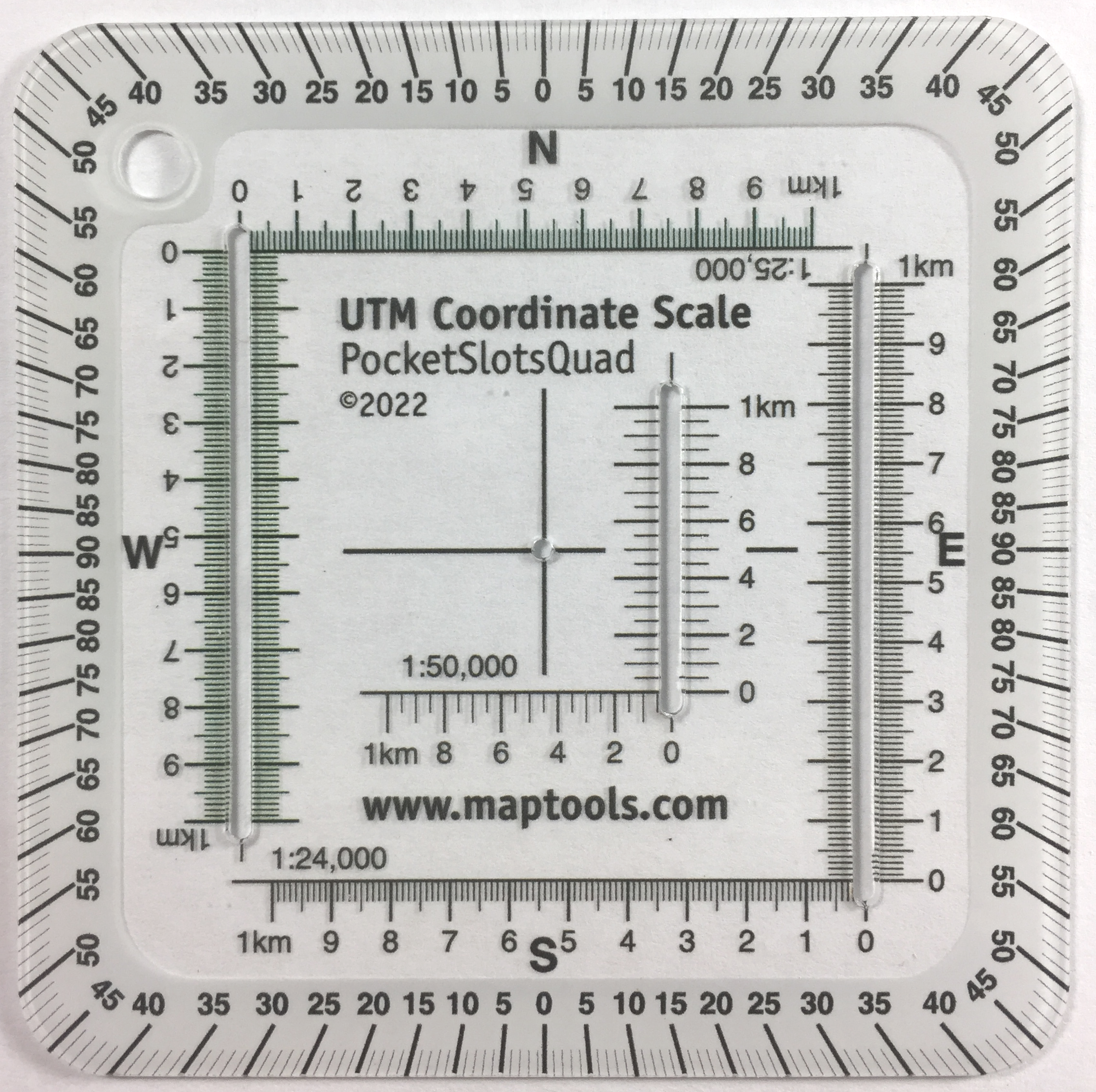

A pocket sized tool with slot scales for 1:24,000, 1:25,000, and 1:50,000 scale maps. The 1:24,000 and 1:25,000 scales allow you to divide a 1km map grid with 10m precision. The 1:50,000 scale allows you to divide a 1km map grid with 20m precision. The tool also has a compass rose along its outside edge marked in 90 degree quadrants. This makes plotting or measuring a bearing a snap. The small size of this tool will allow you to keep it handy in your pocket.

We also have this tool with a compass rose marked in degrees or mils, PocketSlots (degrees)

PocketSlotsMils

A band of white ink around the edge of the tool makes reading the compass rose easier and also keeps the tool from “disappearing” when you place it on the map. There is also a lanyard hole in the upper left corner.

Printed on plastic stock, the tool is about the thickness of a credit card. The ink is coated to protect it from abrasion.

Add to Shopping Cart

Item description Quantity Price Quantity
Pocket Sized UTM Slot Tool - 90 Degree Quadrants
Compass rose marked in 90 degree quadrants.
Part Id: PocketSlotsQuads, Made in United States, UPC: 824249000702
1 - 9
10 - 24
25 - 99
100+
$5.49
$4.67
$3.84
$3.29

Specifications

Scales:
  • 1:24,000 x 1km
  • 1:25,000 x 1km
  • 1:50,000 x 1km
Dimensions:
Height: 2.750 in. (70mm)
Width: 2.750 in. (70mm)
Thickness: 0.030 in. (1mm)
Made in United States.
