A Quick Guide to Using kUTM Coordinates

Standing at the center of the marker shown on the map below, a GPS unit set to display position in UTM/UPS format, would report a location of:

GPS Display UTM

Let's look at where the various parts of the UTM position come from on the map.

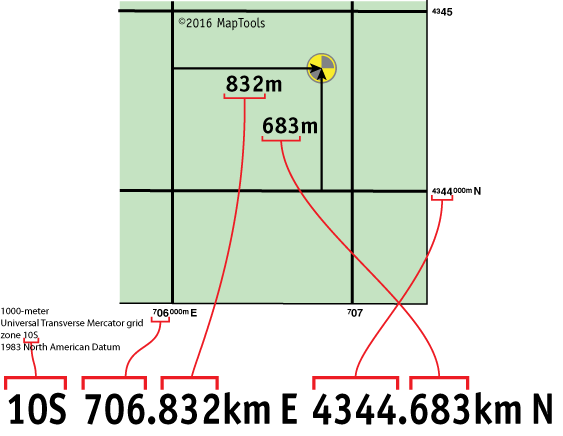

Map with UTM position

The map has grid lines spaced every kilometer or 1000 meters. The grid is labeled with UTM coordinate values. The vertical grid lines determine East-West position and the horizontal grid lines determine North-South position.

Look along the bottom edge of the map at the labels for the vertical grid lines.

Grid Labels

The label, 706000m E , reads "seven hundred and six thousand meters East." The label, 707 , is an abbreviation for, 707000m E The two grid lines are 1000 meters apart. The horizontal grid lines are labeled in a similar manner.

The 10S is the Grid Zone Designation you are in. The Grid Zone is necessary to make the coordinates unique over the entire globe.

The top set of numbers, 706832, represent a measurement of East-West position, within the Grid Zone, in meters. It's called an Easting. Using a map with a 1000m grid, the first digits are come from the label for the grid line to the west of the position. The last 3 digits are the distance in meters measured from the western grid line.

The bottom set of numbers, 4344683, represent a measurement of North-South position, within the Grid Zone, in meters. It's called a Northing. Using a map with a 1000m grid, the first digits are come from the label for the grid line to the south of the position. The last 3 digits are the distance in meters measured from the southern grid line.

Using various tools to plot and measure UTM positions on a map

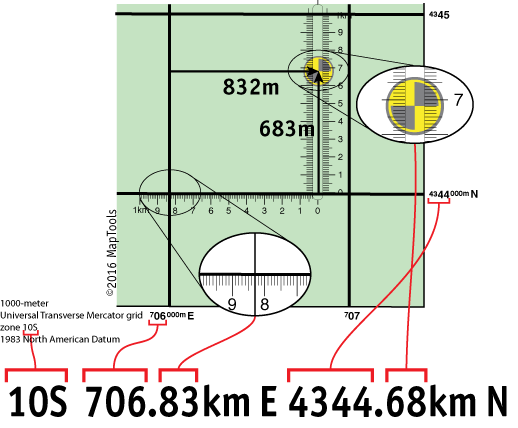

Using a grid style tool to plot/measure a UTM position with 100m precision

Map with UTM position

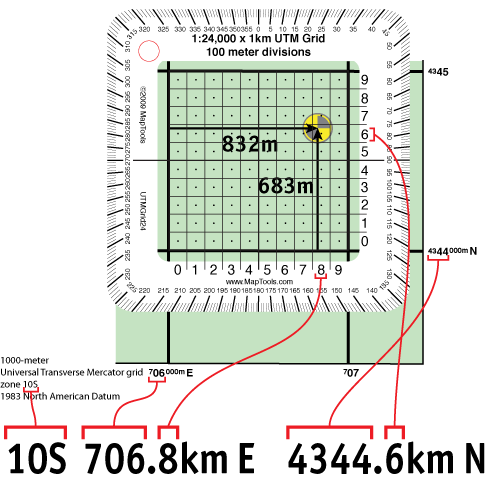

Using a slot style tool to plot/measure a UTM position with 10m precision

Map with UTM position

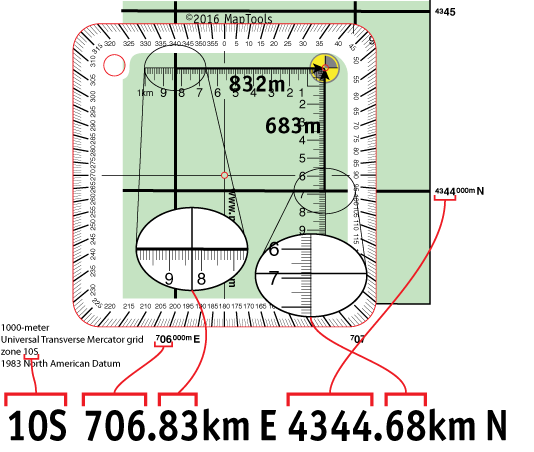

Using a corner ruler roamer style tool to plot/measure a UTM position with 10m precision

Map with UTM  position

Using a mini corner style tool to plot/measure a UTM position with 10m precision

Map with UTM position

Leading zeros on the Easting and Northing

It's very common for a GPS receiver to display a leading zero on the Easting measurement, as a place holder for the millions meter digit. In our example the GPS shows an easting of 0706832. We typically drop the leading zero when we write the number. If you made a purchase for $706.83, you probably wouldn't write that as $0706.32. But if you were filling out a form with a box for each digit, you would want to get the digits in the right place.

707000m E

Your GPS fills the "empty boxes" on the left with zeros. You should too, when you are entering a coordinate into your GPS.

For improved clarity, write the measurement units with the Easting and Northing

In the world of map coordiantes, there are a lot of different coordinate formats. If you just run a bunch of digits together with no spacing or units, you run the risk of having someone else misunderstand what coordinate format you are using. In the case of kUTM, I suggest writing "km E" for "kilometers East" after the Easting, and "km N" for "kilometers North" after the Northing. When communicating a coordinate by voice, say the words "kilometers East" after the Easting and "kilometers North" after the Northing.

There are several documented cases where a string of digits was passed, usually by voice, to someone else who misinterpreted the coordinate format. In one case this led to the rescue helicopter being sent 30 miles away from the actual incident.
