Aerial Photo UTM Corner Rulers
Lots of Scales, More Precision

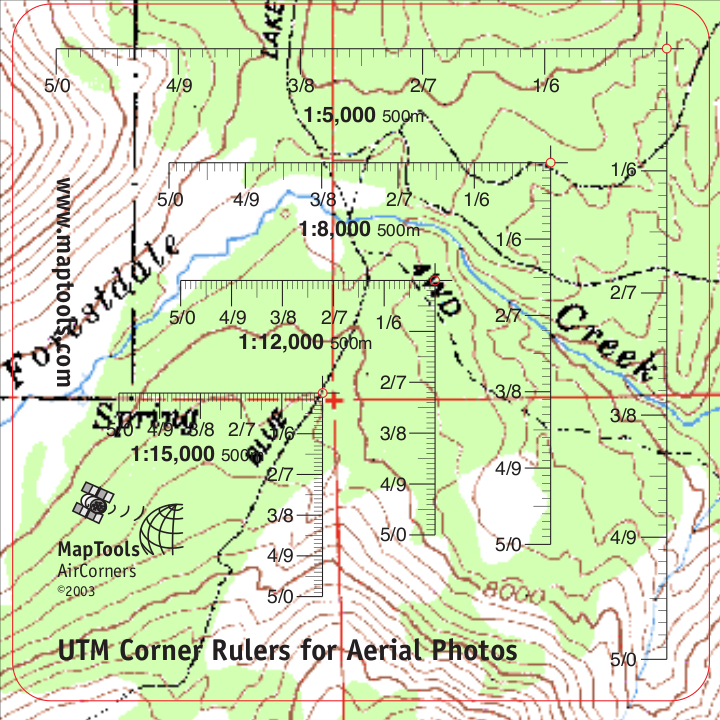

Note: Product edges and interior cutouts are shown with a thin red line. Neither the red lines, colored background, nor map image are printed on the actual tool. (more info)

Product Description

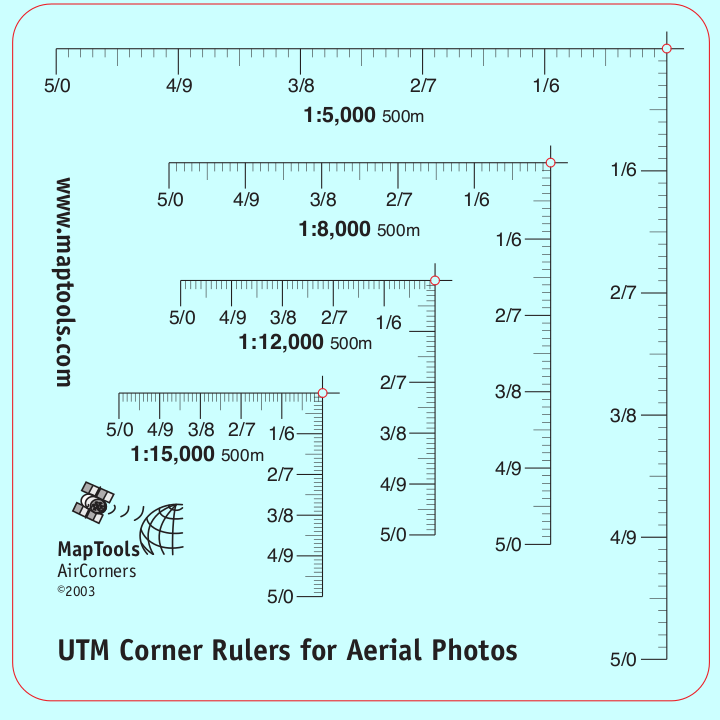

Four corner rulers on a single card covering the most common scales used for aerial photography. Each corner ruler allows you to plot a UTM coordinate within a 500m map grid with 10m precision. Each corner has a small hole to allow for placing a mark on the photo or map.

Add to Shopping Cart

Item description Quantity Price Quantity
Aerial Photo UTM Corner Rulers
Lots of Scales, More Precision
Part Id: AirCorner, Made in United States, UPC: 824249150056
Quantities of 10 or more, shipped in bulk packaging. more info
1 - 9
10 - 24
25 - 99
100+
$6.75
$5.74
$4.73
$4.05

Specifications

Scales:
  • 1:5,000 x 500m
  • 1:8,000 x 500m
  • 1:12,000 x 500m
  • 1:15,000 x 500m
Dimensions:
Height: 4.500 in. (114mm)
Width: 4.500 in. (114mm)
Thickness: 0.030 in. (1mm)
Made in United States.

Related Products

Item description Price
UTM Corner Ruler -- Large Classroom Training Aid
Part Id: CornerRuler-TA, Made in United States, UPC: 824249000788
$16.95

How to use products like this...

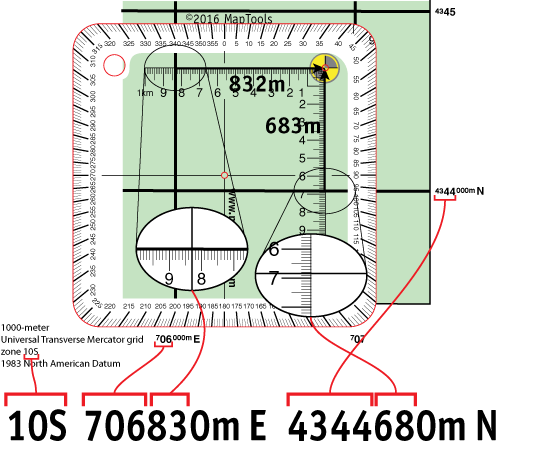

Using a corner ruler roamer style tool to plot/measure a UTM position with 10m precision

Map with UTM  position

Here is a tutorial on using this type of tool.

Here is information on using the Universal Transverse Mercator coordinates (UTM).

Here is information on using the United States National Grid (USNG).

Here is information on using the Military Grid Reference System (MGRS).
